Rescue Tripod

A rescue tripod is a professional piece of equipment used for rescues at heights, on cliffs, or in wells. Its use mainly includes three core steps: preparation, setup and installation, and operation. The following will explain each step in detail, emphasizing key safety precautions.

Usage Steps:

1. Preparation and Inspection: Before use, check the tripod's information label to confirm that its maximum load capacity, operating height, and span meet the rescue requirements.

Check all connecting components (such as legs, quick-release pins, and winch) for damage, ensuring the support legs are securely fixed and the winch is functioning properly.

Adjust the tripod's feet and support leg angles according to the rescue site conditions, ensuring the lifting point is centered for stability.

2. Setup and Installation: Separate the three legs of the tripod, extend the telescopic rod to the required length, and lock it with the locking pins.

Erect the tripod and secure the bottom of the three legs with the fixing chains to prevent tipping.

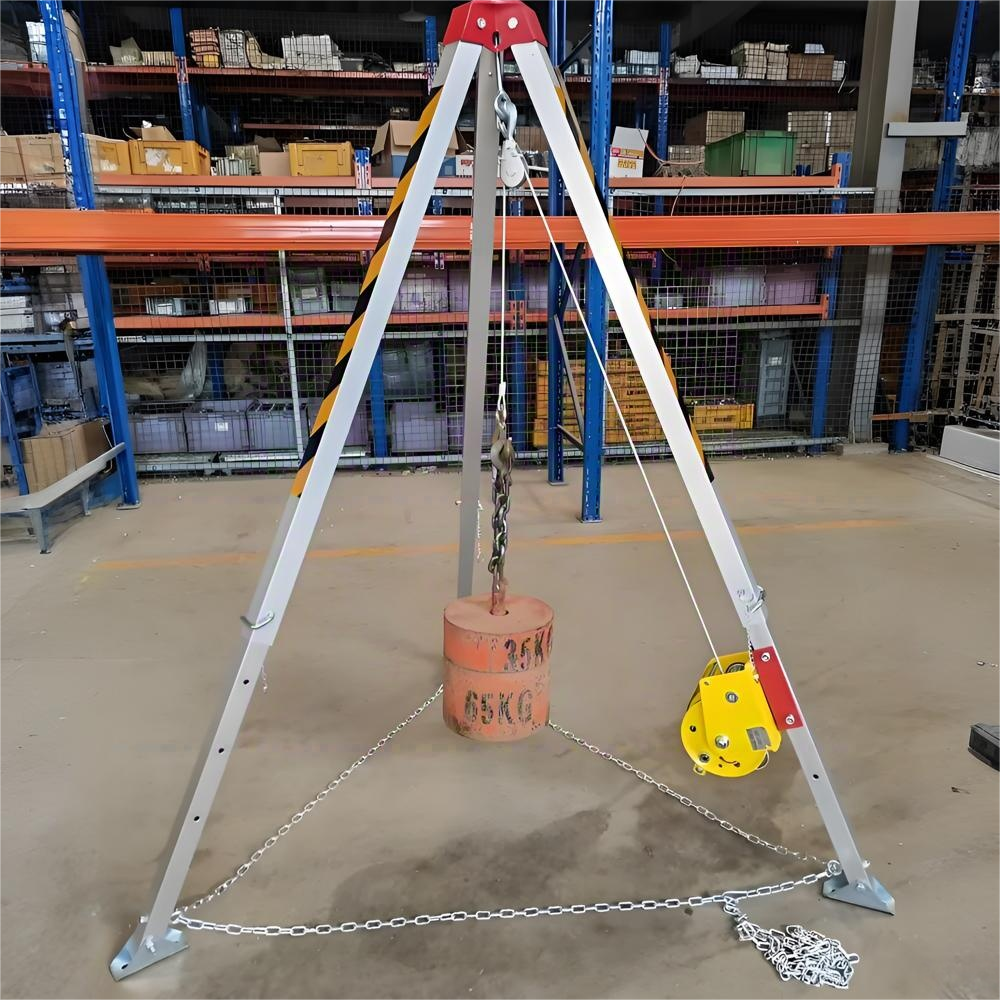

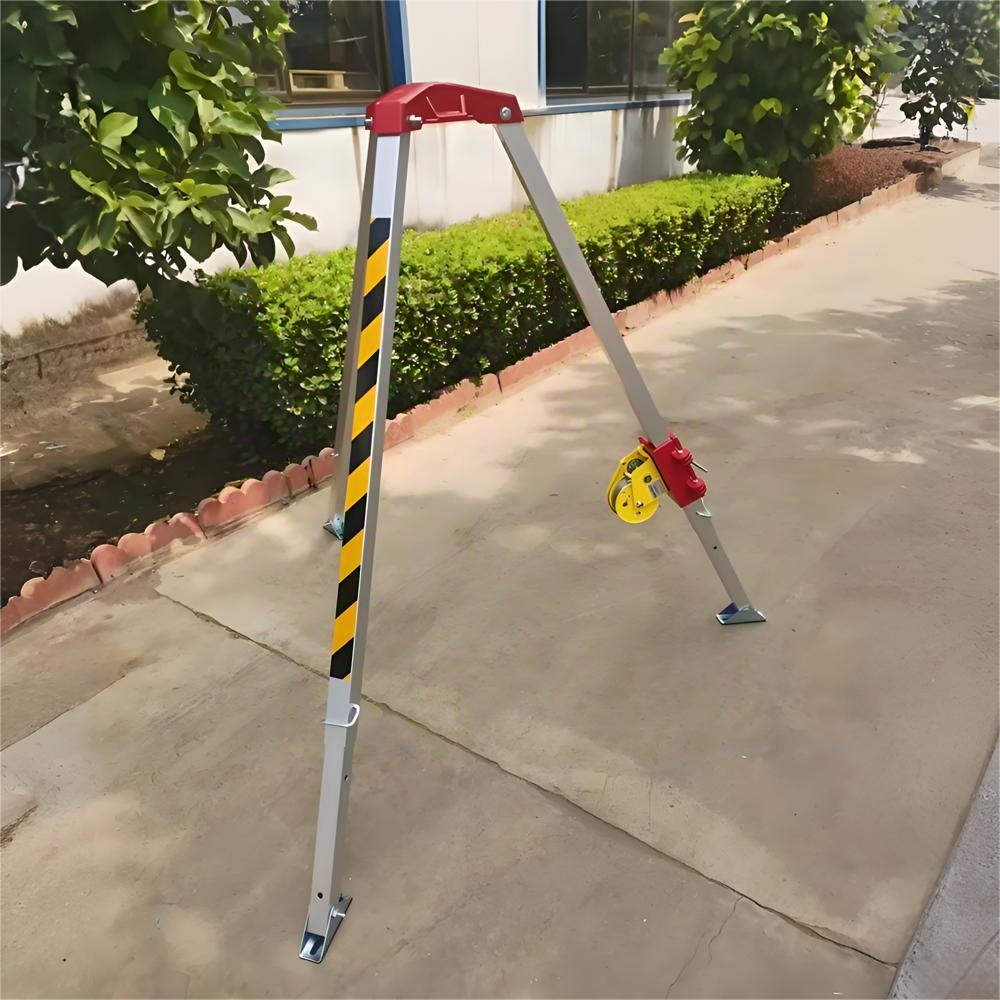

 3. Install the manual winch. Secure the winch to one leg of the tripod using a pin, ensuring the gears face inwards and the sling outlet faces upwards. Thread the wire rope through the pulley at the top of the tripod and connect it to the rescue harness or stretcher.

4. Operate the rescue. The rescuer, wearing the rescue harness, operates the winch to slowly lower the person to the rescue location. During operation, maintain a steady speed, avoiding excessive speed, and continuously check the condition of the tripod and connecting components. After the rescue is completed, loosen the winch wire rope, disassemble all components, and clean and inspect the tripod.

Key Precautions

Safety First: Always ensure the tripod is used within its rated load range; overloading is strictly prohibited.

Environmental Adaptability: When using in complex terrain (such as slopes or uneven ground), maintain the tripod's level by adjusting the support resistance; if necessary, use weights to increase stability. Regular maintenance: Regularly lubricate rotating parts such as the winch, check the steel cable for damage, and ensure the equipment is always in usable condition.

Personnel training: Rescue operations should be performed by professionally trained personnel. Untrained personnel should never attempt to use the equipment.
